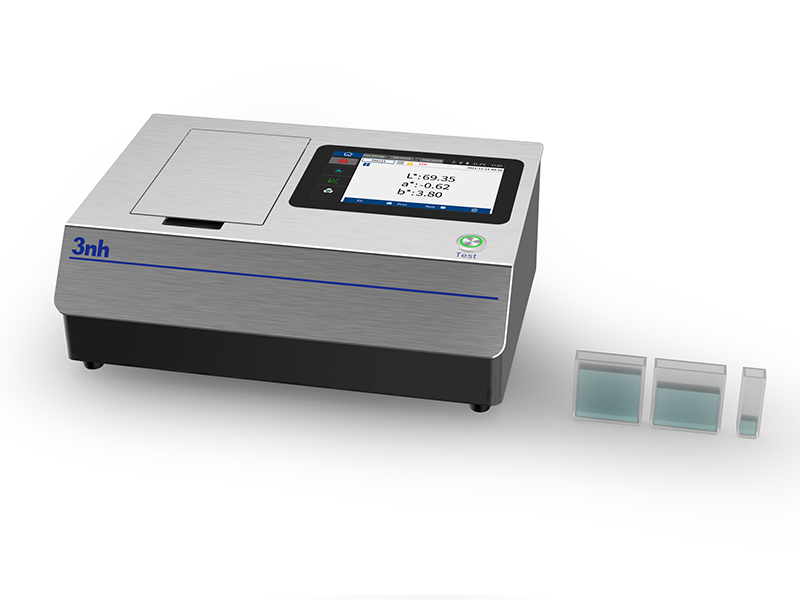

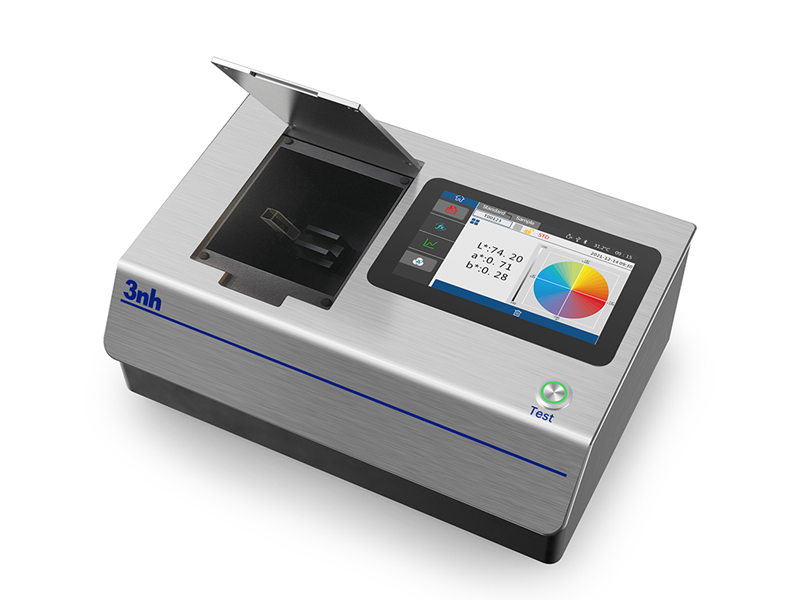

액상칼라 색차계 (Liquid Color Spectrophotometer) / TS4020 / 가드너칼라(Gardner color) , APHA color (Pt-co)

TS4020



• 액상 샘플의 색상측정을 위한 고정밀 분광측색계
• 액상 샘플의 색상측정을 필수 칼라규격을 대부분 적용이 가능
  - APHA color (Pt-Co, Hazen), Gardner color, 투과율, 색도값 외 다수
• 화학 산업, 식음료, 석유화학 산업, 제약 산업 등 다양한 분야의 색도 측정에 널리 사용
• PC quality management software 를 공급하여 편리한 품질관리

모델 (Model)	TS4020
Illumination	Transmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
Integrating sphere size	Φ 40 mm
Light source	Combined full spectrum LED light source
Spectral method	Plat grating spectrometer
Sensor	Silicon photodiode array (dual row 40 groups)
Wavelength range	360 ~780 nm
Wavelength interval	10nm
Half bandwidth	5nm
Transmittance range	0~200%
Measuring aperture	Transmission: Φ 10 mm
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 ,CMYK( the above parts are realized by the host computer)
Color difference formula	ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH
Other color indexes	Transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index, Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5(a total of 41 light sources, the above part is realized by the host computer)
Displayed Data	Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring time	Fast mode: about 0.8s
Repeatability	Spectral transmittance: standard deviation within 0.05% ( 400~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.01 (after preheating correction, measured at intervals of 5S);
Inter-instrument Error	ΔE*ab within 0.2 (average value of 5 standard transmission color plates measured by the original manufacturer)
Size	Length x width x height = 370 x 300 x 200 mm
Weight	About 9.6kg
Power supply mode	Powered by DC 24V/3A power adapter
Illuminant Life Span	More than 3 million measurements in 5 years
Display	TFT true color 7-inch, capacitive touch screen
Interface	USB, print serial port , Bluetooth
Data Storage	1000 Standards, 10000 test samples

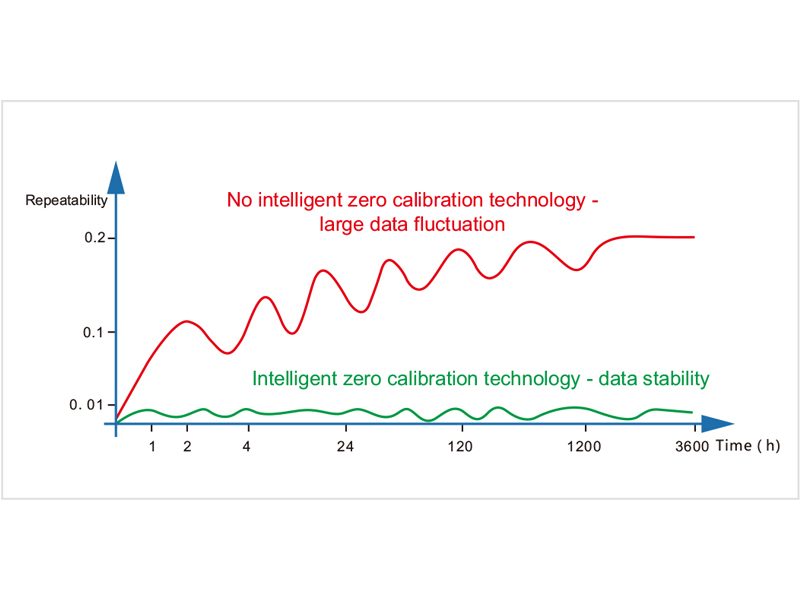

Special Features	Intelligent zero calibration
Language	Simplified Chinese, Traditional Chinese, English
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)
Standard accessories	Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, micropore (4mm) transmission test fixture assembly
Optional accessories	Micro printer, 30mm cuvette, 100mm cuvette
Note:	The technical parameters are for reference only, please refer to the actual products sold.
