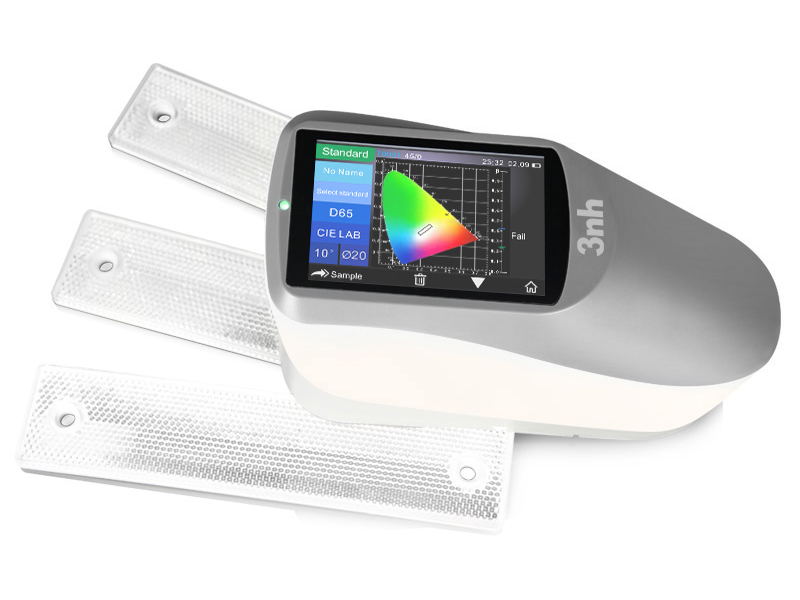

신형 분광측색계 (Spectrophotometer)



모델 (Model)	YS4560	YS4580
Illumination/   Observation system	45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Integrating Sphere Size	Φ48mm
Light Source	Combined LED Light, UV Light
Spectral separation device	Concave Grating
Detector	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400~700nm
Wavelength Pitch	10nm
Half Bandwidth	10nm
Reflectance Range	0~200%
Measuring Aperture	MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm	Φ20mm
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula	ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter)，YI(ASTM D1925，ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data	Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time	About 1.5s
Repeatability	[YS4560] Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)  [YS4580] Spectral reflectance: Standard deviation within 0.1% Chromaticity value:within ΔE*ab 0.04
Inter-instrument Error	[YS4560] Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) [YS4580] Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode	Single Measurement, Average Measurement(2-99)
Size(L*W*H)	184*77*105mm
Weight	About 600g
Power source	Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 4.0
Data memory	Standard 1000 Pcs, Sample 30000 Pcs
Language	Chinese,English
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory	Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory	Micro Printer, Powder Test Box, Universal test components, Locating Plate
